Face tracking

1. Function Introduction​

Based on the facial positioning function, combined with the robotic arm to achieve facial tracking function.

Code path：~/jetcobot_ws/src/jetcobot_face_follow/face_tracking.ipynb

2. About code​

  • Import header file
import cv2 as cv
import threading
from time import sleep
import ipywidgets as widgets
from IPython.display import display
from face_follow import face_follow
  • Create an instance and initialize parameters
# Create an instance
follow = face_follow()
# Initialization mode
model = 'General'
  • Create Control
button_layout = widgets.Layout(width='250px', height='50px', align_self='center')
output = widgets.Output()
# exit button
exit_button = widgets.Button(description='Exit', button_style='danger', layout=button_layout)
# Image widget
imgbox = widgets.Image(format='jpg', height=480, width=640, layout=widgets.Layout(align_self='center'))
# spatial distribution
controls_box = widgets.VBox([imgbox, exit_button], layout=widgets.Layout(align_self='center'))
# ['auto', 'flex-start', 'flex-end', 'center', 'baseline', 'stretch', 'inherit', 'initial', 'unset']
  • Mode switching
def exit_button_Callback(value):
global model
model = 'Exit'
#     with output: print(model)
exit_button.on_click(exit_button_Callback)
  • Main program
def camera():
global model
# Open camera
capture = cv.VideoCapture(0)
while capture.isOpened():
try:
_, img = capture.read()
img = cv.resize(img, (640, 480))
img = follow.follow_function(img)
if model == 'Exit':
cv.destroyAllWindows()
capture.release()
break
imgbox.value = cv.imencode('.jpg', img)[1].tobytes()
except KeyboardInterrupt:capture.release()
  • Start
display(controls_box,output)
threading.Thread(target=camera, ).start()

3. Run program​

Click the run button on the jupyterlab toolbar, run the entire program, and then drag it to the bottom.

202309010001

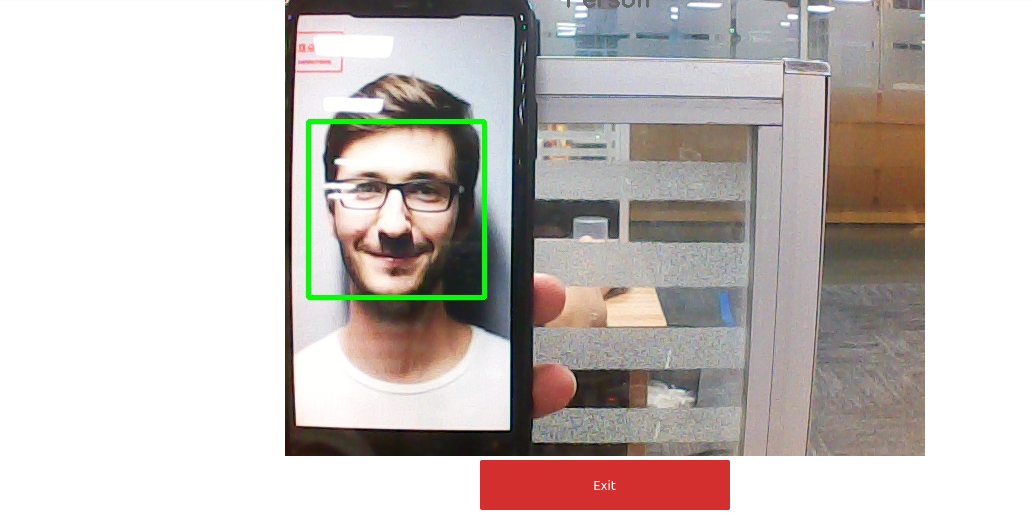

You can see the camera image, and when you place the face into the camera image, the robotic arm will move along with the face.

Note: When moving the face, the speed should not be too fast, otherwise the robotic arm may not be able to keep up due to the movement being too fast.

1697535412026_7AF07D3E-1E1D-4121-AF16-24D983DB696B
